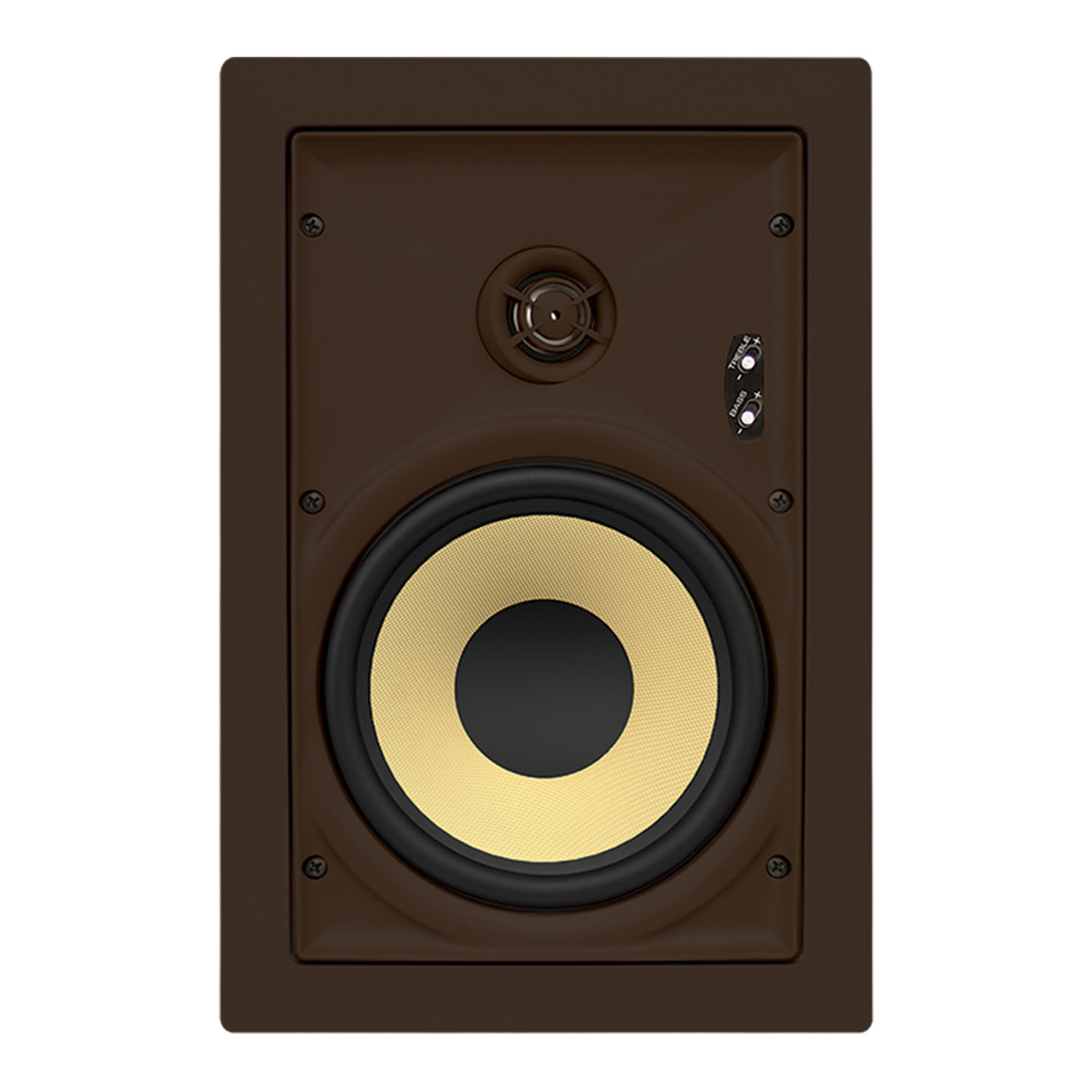

Signature W695s

In-Wall Speakers with 6½” Kevlar Woofers, 1″ Pivoting Aluminum Tweeters and Tone Switches

Here’s the best 6½-inch single-woofer in-wall we’ve ever offered. The W695s has a Kevlar-cone woofer for ultra-deep bass power and low distortion, and a pivoting aluminum-dome tweeter for clear, extended treble. High sensitivity means that even a low-powered amplifier can get the W695s really cranking!

Description

As Good As It Gets. Kevlar fiber can’t stretch, which is why it reduces distortion in a speaker and why we chose it for the W695s’s woofer cone. The W695s’s 6-1/2-inch Kevlar woofer puts out incredible bass down to 32 Hz, which is lower even than some subwoofers can play! A cast magnesium basket provides a super-stiff frame for the powerful woofer. The W695s’s 1-inch aluminum-dome reproduces high frequencies with clarity and power, and it also pivots so you can direct the sound where you need it. Boost switches for bass and treble provide an extra +3 dB kick when it’s needed. With 90 dB sensitivity and 150-watt power handling, the W695s works great with amplifiers of any power rating. Includes Thin-Bezel Grilles held in place by Neo Magnets.

Specifications

6-1/2″ Kevlar® Woofers
Frequency Response: 32Hz – 22kHz
Cast Magnesium Woofer Baskets
Impedance: 8Ω
1″ Pivoting Aluminum Dome Tweeters
Sensitivity: 90dB 1W/1m
+3db Bass & Treble Contour Switches
Dimensions (H x W x D): 12-1/4″ x 8-3/16″ x 3-3/16″
Power Handling: 150 Watts
Wall Cut Out (H x W): 10-7/8″ x 6-3/4″
Replaces W692 Inwall Speakers
Includes Thin-Bezel Grilles held by Neo Magnets

Other Specifications

General
  • FamilySignature Series
Shipping Info
  • Length13.5 (Inches)
  • Width9.75 (Inches)
  • Height10.25 (Inches)
  • Weight5.1 (Lbs)
  • Unit of MeasurePair
  • UPC664254999826
  • Master Pack Qty4
Other Specifications
  • 6-½” Kevlar® Woofers
  • Frequency Response: 32Hz – 22kHz
  • Cast Magnesium Woofer Baskets
  • Impedance: 8Ω
  • 1″ Pivoting Aluminum Dome Tweeters
  • Sensitivity: 92dB 1W/1m
  • +3db Bass & Treble Contour Switches
  • Dimensions (H x W x D): 12-¼” x 8-3/16″ x 3-3/16″
  • Power Handling: 150 Watts
  • Wall Cut Out (H x W): 10-7/8″ x 6-¾”
  • Replaces W692 Inwall Speakers
  • Includes Thin-Bezel Grilles held by Neo Magnets
