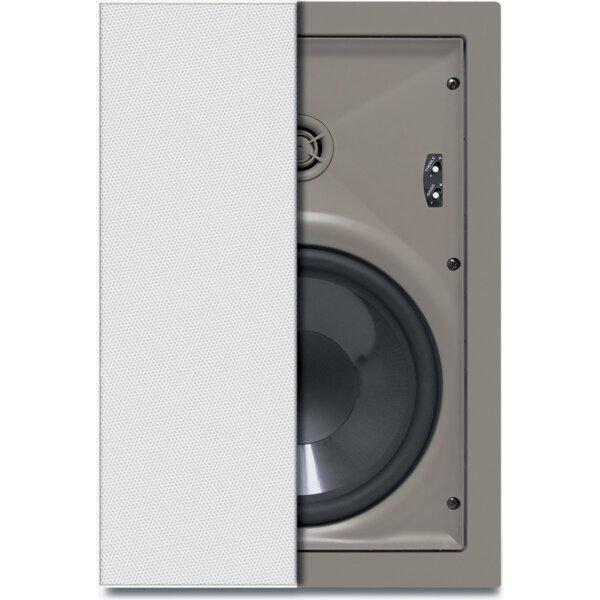

In-Wall Speaker with 8″ Graphite Woofer, 1″ Pivoting Aluminum Tweeter and Tone Switches

Protege W802

The W802 sounds so great you won’t believe it’s an in-wall speaker. It combines a stiff, light graphite-cone woofer with an outstanding aluminum-dome tweeter. The result is incredible bass response—and a speaker you can drive to loud levels with any amplifier. The W802 makes an ideal choice for demanding music listeners.

Description

The W802’s super-stiff 8-inch graphite woofer gives you incredible deep bass response down to 28 Hz, half an octave below the lowest note on an upright bass. Our 1-inch, low-distortion aluminum-dome tweeter makes for a perfect match with the big woofer. Switches behind the grille boost the bass and/or treble by +3 dB for fine-tuning.

With 150-watt power handling, the W802 is capable of volumes over 110 dB. Give it all the power you’ve got and it won’t even flinch. And 92 dB sensitivity means the W802 gives you more than 100 dB from just a 10-watt amplifier! A sturdy dogleg mechanism clamps the W802 into a wall with a turn of a few screws. Includes Thin-Bezel Grilles held by Neo Magnets.

Specifications

General
  • FamilyProtege Series
  • Woofer Size8 (Inches)
Shipping Info
  • Length16.4 (Inches)
  • Width11.7 (Inches)
  • Height11.5 (Inches)
  • Weight16.8 (Lbs)
  • Unit of MeasurePair
  • UPC664254014499
  • Master Pack Qty4
Other Specifications
  • 8″ Graphite Woofers
  • Impedance: 8 Ohms
  • 1″ Pivoting Aluminum Dome Tweeters
  • Sensitivity: 92dB 1W/1m
  • +3db Bass & OhmsTreble Contour Switches
  • Dimensions (H x W x D): 14-7/8″ x 10-1/8″ x 3¾”
  • Power Handling: 150 Watts
  • Wall Cut Out (H x W): 13-5/8″ x 8¾”
  • Frequency Response: 28Hz – 22kHz
  • Replaces W800 Inwall Speakers
  • Includes Thin-Bezel Grilles held by Neo Magnets

Other Specifications

8″ Graphite Woofers
Impedance: 8Ω

1″ Pivoting Aluminum Dome Tweeters
Sensitivity: 92dB 1W/1m

+3db Bass & OhmsTreble Contour Switches
Dimensions (H x W x D): 14-7/8″ x 10-1/8″ x 3-¾”

Power Handling: 150 Watts
Wall Cut Out (H x W): 13-5/8″ x 8-¾”

Frequency Response: 28Hz – 22kHz
Replaces W800 Inwall Speakers

Includes Thin-Bezel Grilles held by Neo Magnets
