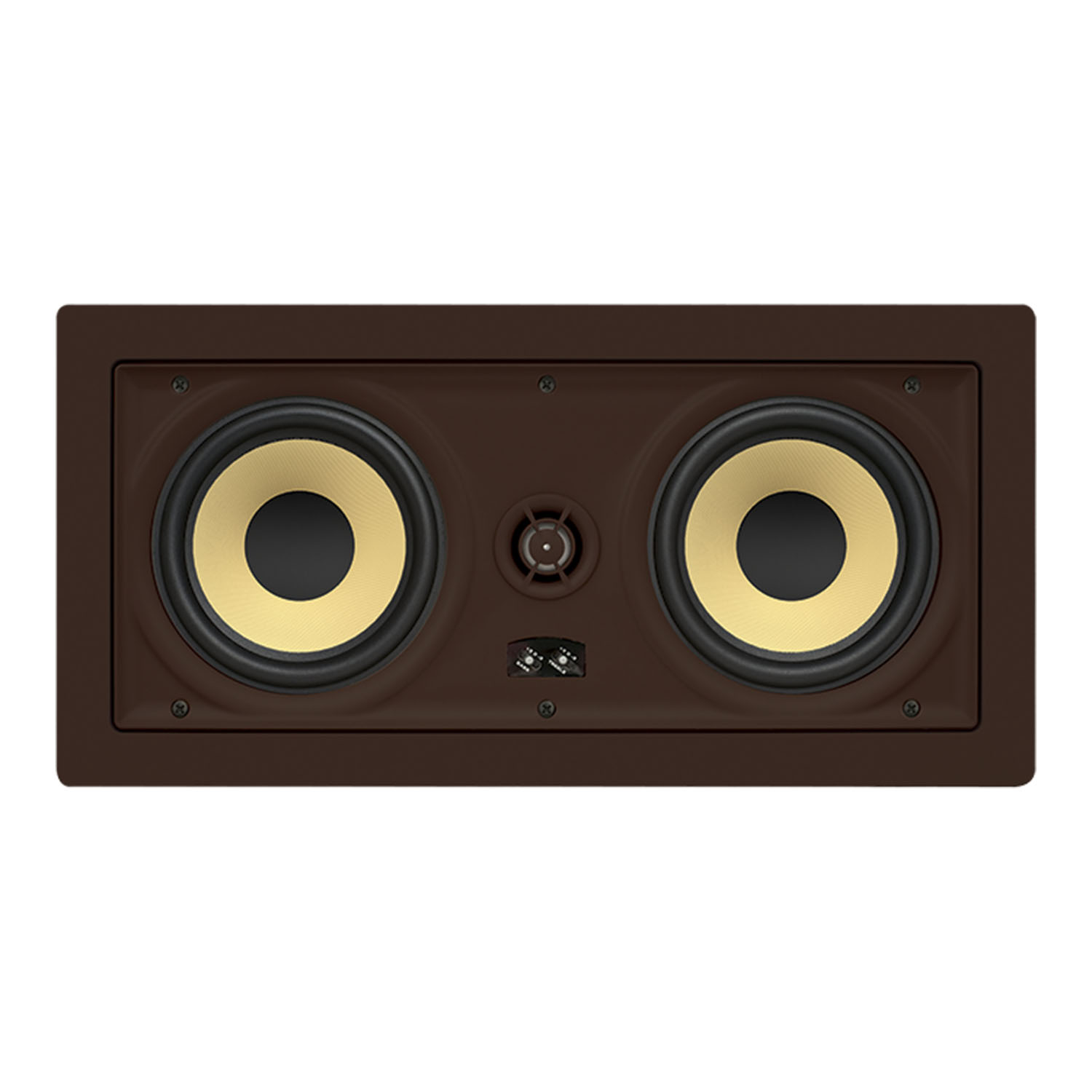

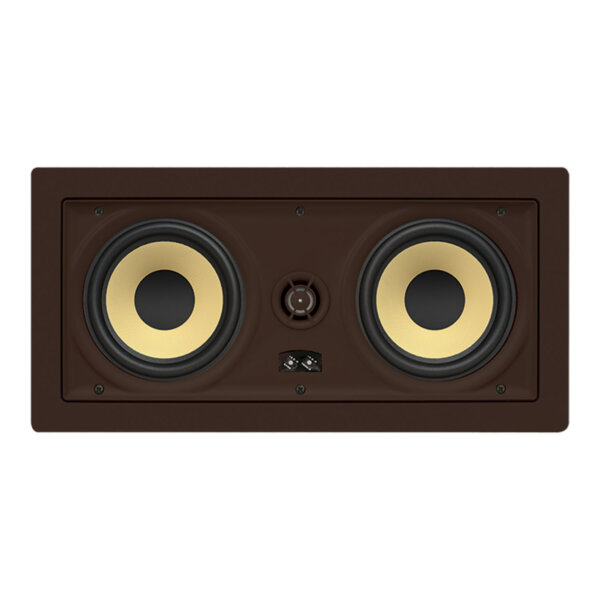

Signature IW575s

In-Wall LCR Speaker with Dual 5-1/4″ Kevlar Woofers and Pivoting 1″ Aluminum Tweeter

This is the speaker you need for a high-performance, yet compact in-wall home theater or media room system. The IW575s’s Kevlar woofers and aluminum tweeter deliver dynamic, high-impact, realistic surround sound. The speaker’s compact frame lets you mount it horizontally or vertically in a standard 16-inch-on-center stud space.

Description

Small in size, huge in sound. Some of the world’s most respected high-end speakers use Kevlar woofers. And so does our awesome little IW575s. Its dual 5¼-inch Kevlar woofers pump out incredibly dynamic sound, enough that you can use them even in a large home theater. A pivoting aluminum tweeter delivers clean highs out past 20 kHz while letting you direct the sound where you want. We designed the IW575s to mount horizontally or vertically, so you can use it for any channel of a surround-sound system. It fits in a standard stud bay no matter which way you turn it; no special construction required. Once it’s in, you can fine-tune the sound using the handy ±3 dB adjustment switches for bass and treble. Includes Thin-Bezel Grilles held by Neo Magnets.

Features

Two 5-1/4″ Kevlar® Woofers
Impedance: 8Ω
1″ Pivoting Aluminum Dome Tweeter
Sensitivity: 88dB 1W/1m
±3db Bass & Treble Contour Switches
Dimensions (H x W x D): 8″ x 15-15/16″ x 3-7/16″
Power Handling: 125 Watts
Wall Cut Out (H x W): 6-3/16″ x 14-1/2″
Frequency Response: 50Hz – 22kHz
Replaces IW555 Inwall LCR Speaker
Includes Thin-Bezel Grille held by Neo Magnets

Specifications

Two 5-1/4″ Kevlar® Woofers
Impedance: 8Ω
1″ Pivoting Aluminum Dome Tweeter
Sensitivity: 88dB 1W/1m
±3db Bass & Treble Contour Switches
Dimensions (H x W x D): 8″ x 15-15/16″ x 3-7/16″
Power Handling: 125 Watts
Wall Cut Out (H x W): 6-3/16″ x 14-1/2″
Frequency Response: 50Hz – 22kHz
Replaces IW555 Inwall LCR Speaker
Includes Thin-Bezel Grille held by Neo Magnets

Other Specifications

General
  • FamilySignature Series
Shipping Info
  • Length17.3 (Inches)
  • Width9.3 (Inches)
  • Height5.2 (Inches)
  • Weight7.75 (Lbs)
  • Unit of MeasureEach
  • UPC664254999802
  • Master Pack Qty3
Other Specifications
  • Two 5-¼” Kevlar® Woofers
  • Impedance: 8Ω
  • 1″ Pivoting Aluminum Dome Tweeter
  • Sensitivity: 88dB 1W/1m
  • ±3db Bass & Treble Contour Switches
  • Dimensions (H x W x D): 8″ x 15-15/16″ x 3-3/8″
  • Power Handling: 125 Watts
  • Wall Cut Out (H x W): 6-3/16″ x 14-½”
  • Frequency Response: 50Hz – 22kHz
  • Replaces IW555 Inwall LCR Speaker
  • Includes Thin-Bezel Grille held by Neo Magnets
