IW530

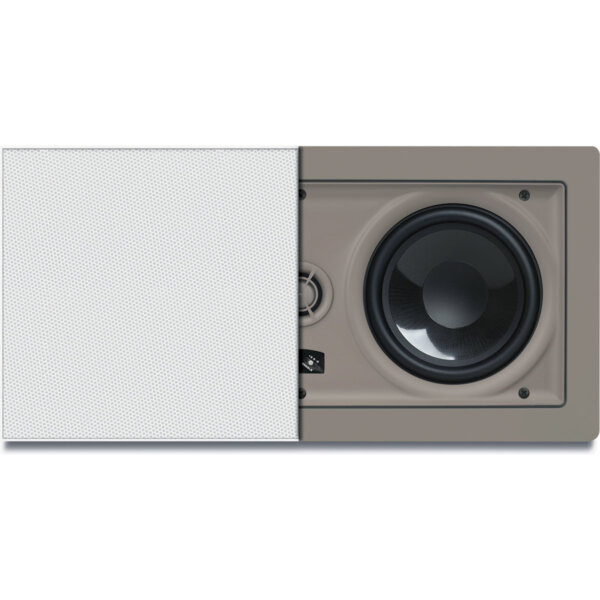

In-wall LCR speaker with dual 5¼” graphite woofers and pivoting 1″ aluminum tweeter

You’ll be blown away when you hear how good this compact in-wall LCR sounds—and even more blown away when you see how little it costs. Dual 5¼-inch graphite woofers give the IW530 a natural and powerful sound, and our thoughtful design lets you mount the speaker either vertically or horizontally in the wall.

Description

Home theater enthusiasts want the dynamics of a big speaker system, but don’t always have the space for one. The IW530 is perfect for them. Its stiff 5¼-inch graphite woofers have a punchy, dynamic yet amazingly natural sound. The low-distortion aluminum tweeter pivots so you can direct the sound where you need it.

Whether you mount it vertically or horizontally, the IW530 fits easily into a standard stud bay. Tone switches give you ±3 dB adjustment of bass and treble—an extremely useful feature you don’t usually see at this price point. There’s no easier or more affordable way to build a world-class yet visually inconspicuous home theater sound system. Includes Thin-Bezel Grilles held by Neo Magnets.

Specifications

Two 5¼” Graphite Woofers
Impedance: 8 Ohms

1″ Pivoting Aluminum Dome Tweeter
Sensitivity: 88dB 1W/1m

±3db Bass & Treble Contour Switches
Dimensions (H x W x D): 8″ x 15-15/16″ x 3-7/16″

Power Handling: 100 Watts
Wall Cut Out (H x W): 6-3/16″ x 14½”

Frequency Response: 65Hz – 20kHz
Replaces IW525 Inwall LCR Speaker

Includes Thin-Bezel Grille held by Neo Magnets

Other Specifications

General
  • FamilyProtege Series
  • Woofer Size5.25 (Inches)
Shipping Info
  • Length17.4 (Inches)
  • Width9.4 (Inches)
  • Height5.3 (Inches)
  • Weight8.6 (Lbs)
  • Unit of MeasureEach
  • UPC664254014390
  • Master Pack Qty3
Other Specifications
  • Two 5¼” Graphite Woofers
  • Impedance: 8 Ohms
  • 1″ Pivoting Aluminum Dome Tweeter
  • Sensitivity: 88dB 1W/1m
  • ±3db Bass & Treble Contour Switches
  • Dimensions (H x W x D): 8″ x 15-15/16″ x 3-7/16″
  • Power Handling: 100 Watts
  • Wall Cut Out (H x W): 6-3/16″ x 14½”
  • Frequency Response: 65Hz – 20kHz
  • Replaces IW525 Inwall LCR Speaker
  • Includes Thin-Bezel Grille held by Neo Magnets
