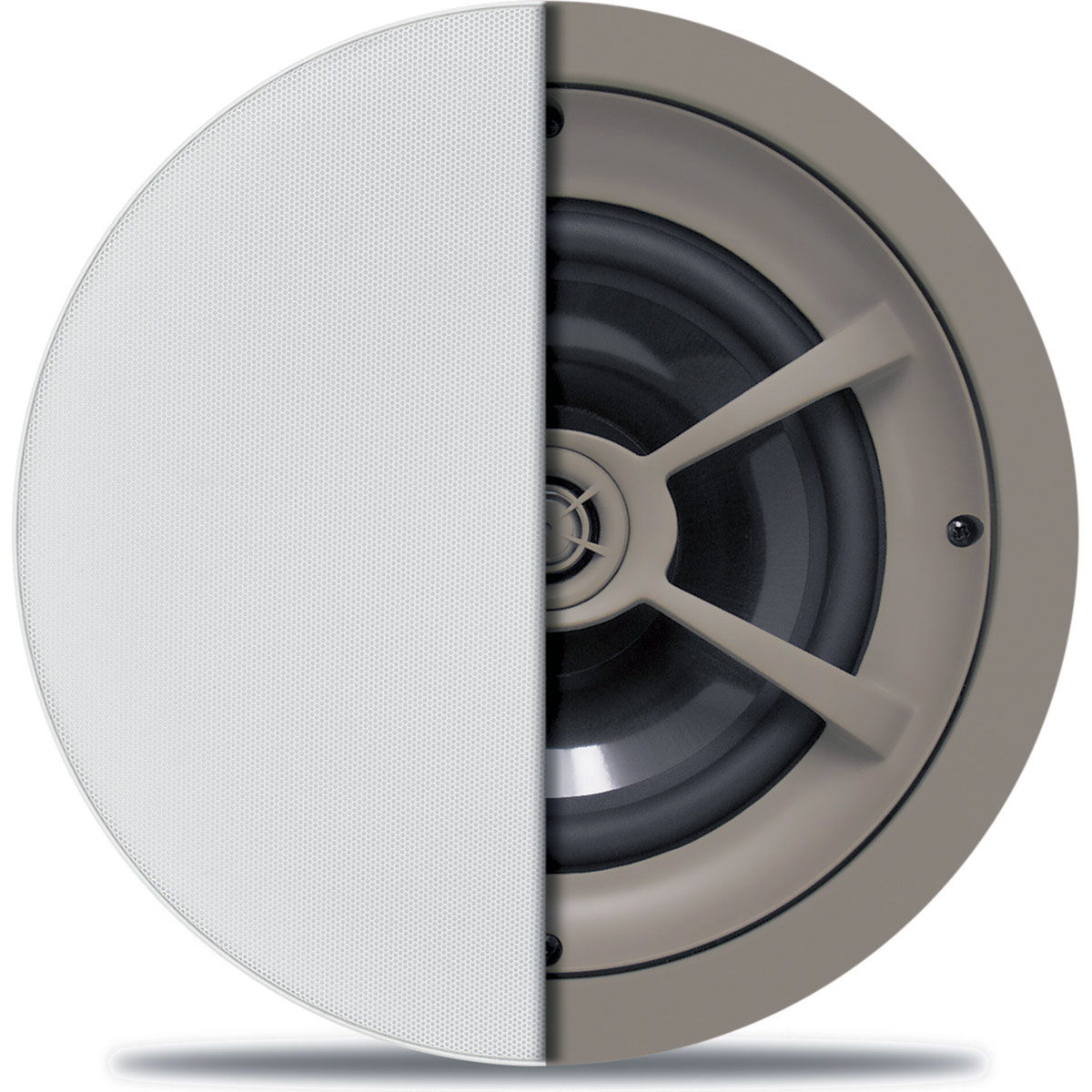

C801

Ceiling speaker with 8″ graphite woofer, 1″ pivoting aluminum tweeter and tone switches

With its ultra-stiff graphite-cone woofer, the C801 is one fantastic-sounding ceiling speaker. The big 8-inch woofer pumps out awesome bass, and the pivoting tweeter delivers clear highs wherever you want them. Bass and treble boost switches hidden behind the grille let you fine-tune the sound in seconds.

Description

Refined sound with raw power.
The graphite material used in the C801’s woofer cone is far stiffer than almost any other cone material you can find. That means it produces low distortion and very clear sound. To keep up with the high-powered woofer, we gave the C801 a low-distortion aluminum tweeter. The tweeter pivots so you can direct the sound wherever you want.

You can boost bass and/or treble by 3 dB using the tone switches behind the grille. A high sensitivity of 92 dB lets the C801 hit 100 dB with just 8 watts of power. With 28 Hz bass extension and 150-watt power handling, this speaker cranks out more than enough oomph for any party anywhere! Includes Thin-Bezel Grilles held by Neo Magnets.

Specifications

8″ Graphite Woofers
Impedance: 8 Ohms

1″ Pivoting Aluminum Dome Tweeters
Sensitivity: 92dB 1W/1m

+3db Bass & Treble Contour Switches
Diameter x Depth: 11-1/8″ x 4¼”

Power Handling: 150 Watts
Ceiling Cut Out: 9¾”

Frequency Response: 28Hz – 22kHz
Replaces C800 Ceiling Speakers

Thin-Bezel Grilles held by Neo Magnets

Other Specifications

General
  • FamilyProtege Series
  • Woofer Size8 (Inches)
Shipping Info
  • Length13.7 (Inches)
  • Width13 (Inches)
  • Height13.1 (Inches)
  • Weight15.7 (Lbs)
  • Unit of MeasurePair
  • UPC664254014321
  • Master Pack Qty4
Other Specifications
  • 8″ Graphite Woofers
  • Impedance: 8 Ohms
  • 1″ Pivoting Aluminum Dome Tweeters
  • Sensitivity: 92dB 1W/1m
  • +3db Bass & Treble Contour Switches
  • Diameter x Depth: 11-1/8″ x 4¼”
  • Power Handling: 150 Watts
  • Ceiling Cut Out: 9¾”
  • Frequency Response: 28Hz – 22kHz
  • Replaces C800 Ceiling Speakers
  • Thin-Bezel Grilles held by Neo Magnets
